FOR CORRECT INSTALLATION

Kitchenhood :

For correct operation of your kitchenhood professional installation by a specialized technician is the key.

Assembly and maintenance vary according to the two types of kitchenhood:

Duct-out hoods exhaust air to the outdoor atmosphere. This type is most used type because they offer high performance, high capacity and low noise.

Recirculating hoods remove unpleasant odors from the air by means of a charcoal and grease filter before re-introducing the air into the kitchen. This type is suitable for kitchens with no extractor duct and also avoids thermal losses to the outside atmosphere.

For efficient performance max 12 feet duct length and max 2 bends are recommended. However there is no maximum or minimum length defined. The principles are the same for any ducted hood – the shortest pipe length with the fewest bends possible will be more efficient than very long pipe work with lots of bends.


Nearly all Elica models are capable of operating in both modes.

Before installing your kitchenhood, familiarize yourself with these basic rules:

   Follow all the steps shown in the instruction handbook;

   If you run into difficulties, seek assistance from a reliable, specialied technician;

   Connect duct-out hoods to the outside atmosphere with a dedicated pipe with a diameter of 4-3/4inches – 6 inches: minimizing the ducting distance and avoiding unnecessary bends maximizes performance;

   Comply with the minimum distance from the cooktop specified in the handbook, in order to ensure safety and avoid damage to working parts;

    Make sure that the electric socket is close enough to the hood for connection.

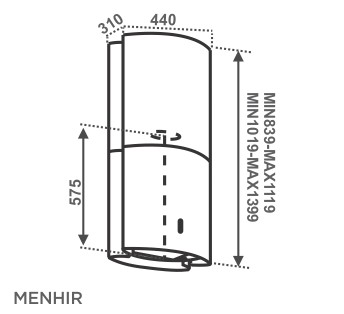

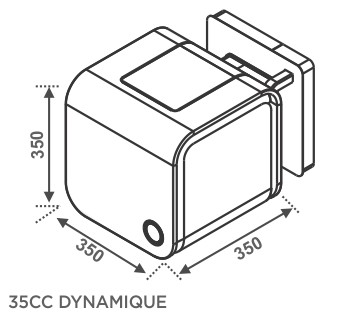

35CC DYNAMIQUE MENHIR

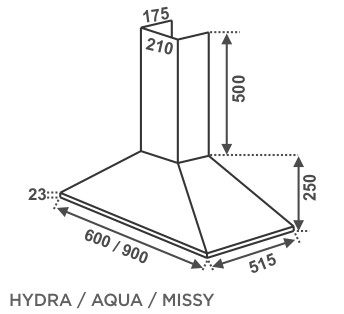

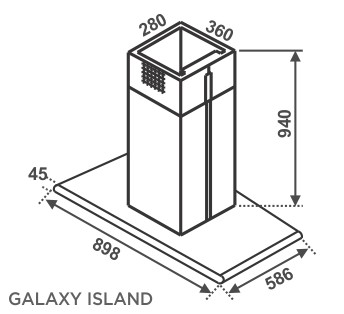

GALAXY ISLAND  HYDRA___AQUA___MISSY

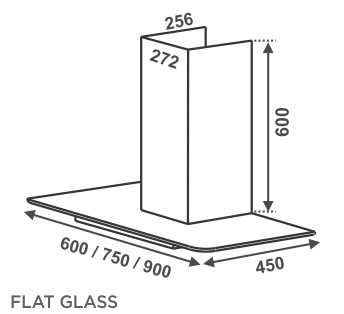

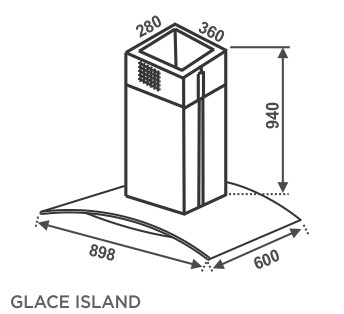

FLAT GLASSGLACE ISLAND

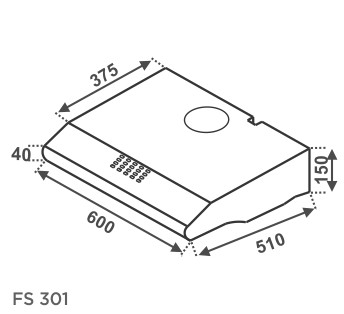

FS 301

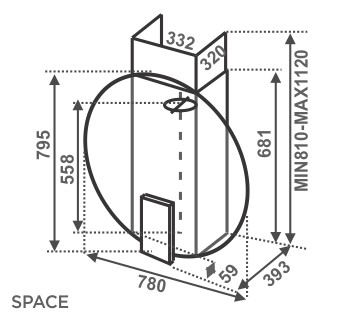

SPACE

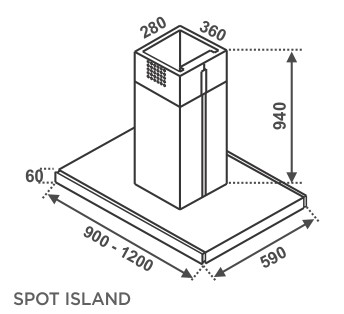

SPOT ISLAND

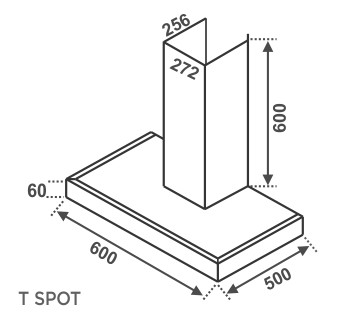

T SPOT

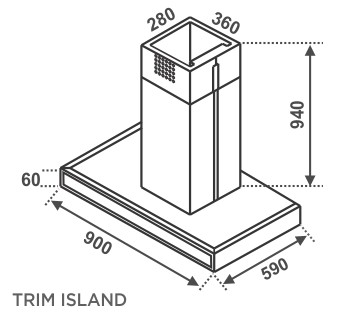

TRIM ISLAND

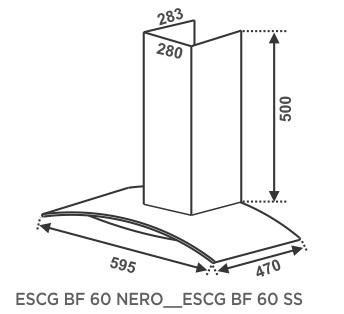

ESCG BF 60 NERO__ESCG BF 60 SS

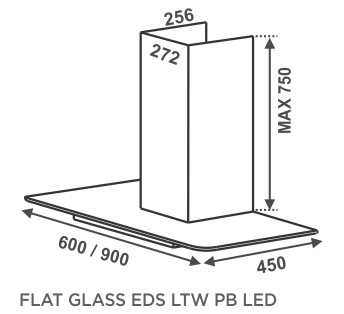

FLAT GLASS EDS LTW PB LED

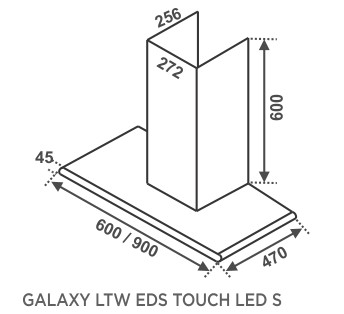

GALAXY LTW EDS TOUCH LED S

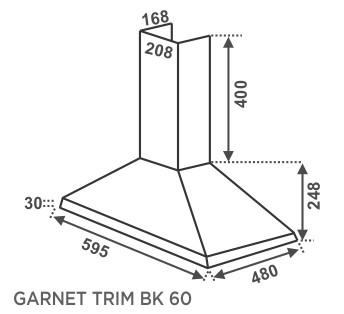

GARNET TRIM BK 60

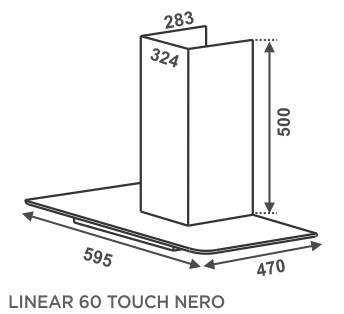

LINEAR 60 TOUCH NERO

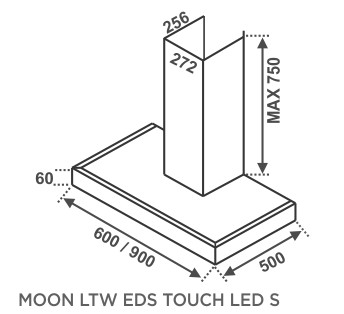

MOON LTW EDS TOUCH LED S

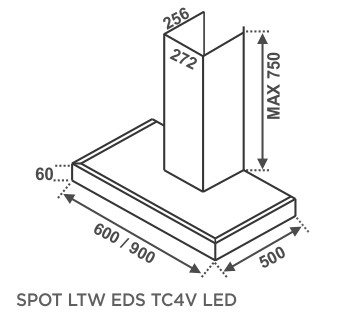

SPOT LTW EDS TC4V LED

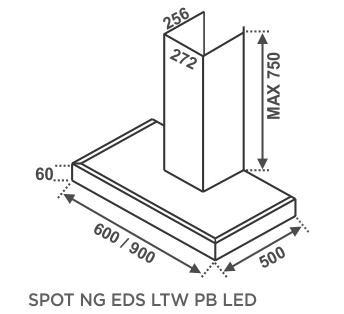

SPOT NG EDS LTW PB LED

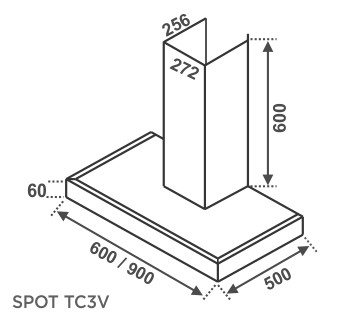

SPOT TC3V

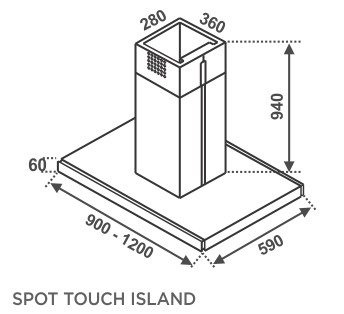

SPOT TOUCH ISLAND

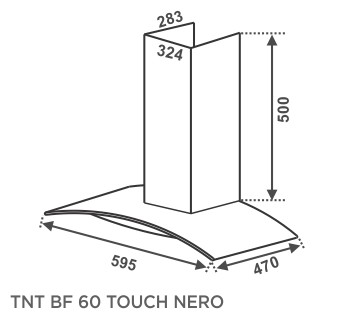

TNT BF 60 TOUCH NERO

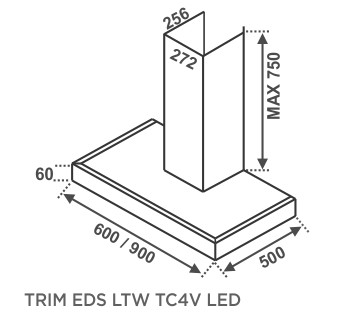

TRIM EDS LTW TC4V LED









Built in Hob :

For correct operation of your Built in Hob professional installation by a specialized technician is the key.

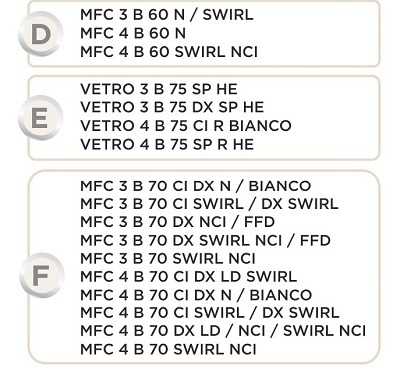

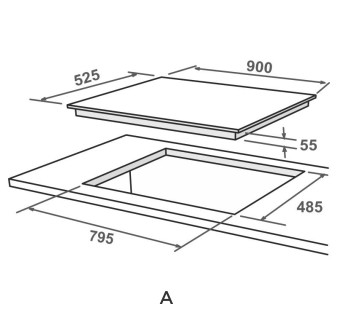

    To fit a Built in Hob kitchen granite platform needs to be cut. Following are the cutting dimensions for cutting the granite for various models. Please select the model of Built in Hob you have purchased and cut the granite according the dimensions specified in below diagrams from a qualified mason/ granite cutter.Please note that you must provide a 5 Amp point for electric ignition of Built in Hob below the platform in vicinity of your built in Hob. All below mentioned dimensions are in millimeter (mm).

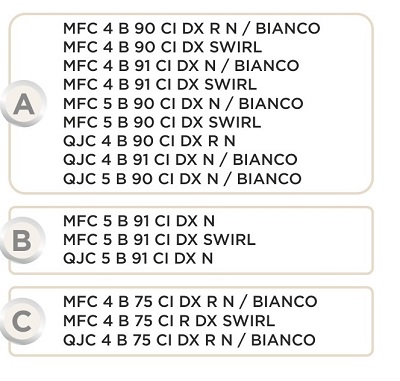

A

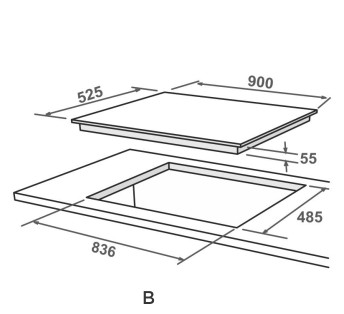

B

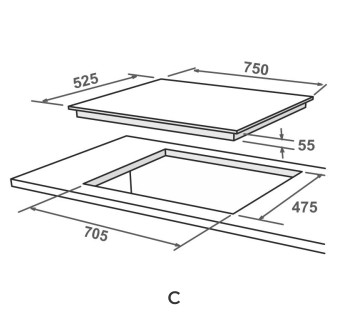

c

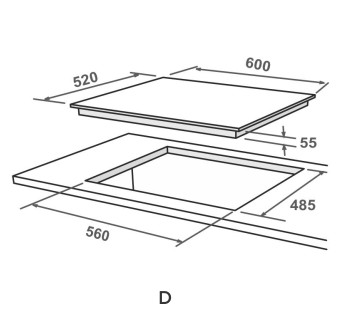

D

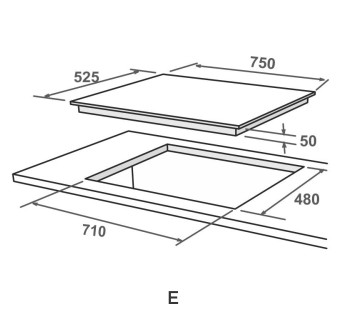

E

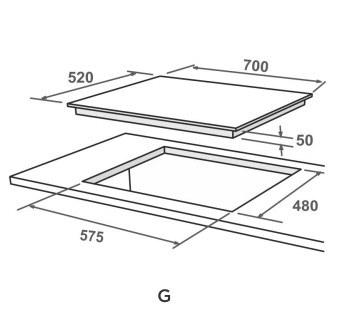

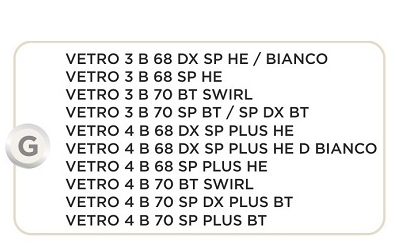

G

A

b

C







Vetro Ceramic Hob :

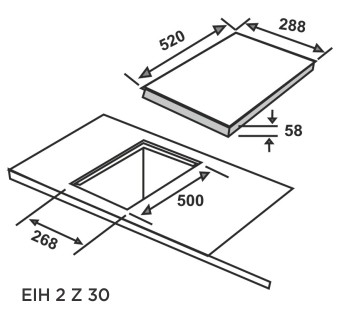

EIH 2 Z 30

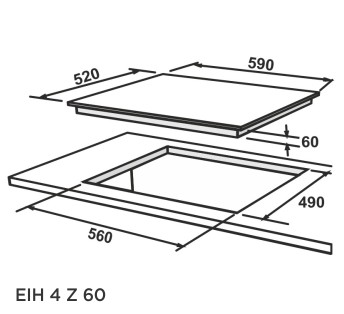

EIH 4 Z 60





elica

elica





Built in Oven/Built on Microwave :

For correct operation of your Built in Oven/Built on Microwave professional installation by a specialized technician is the key.

    To fit a Built in Oven / Microwave, Please provide below mentioned carcass cutting dimensions to your kitchen manufacturer. Please ensure that the back of the carcass (cabinet) should be left open for ventilation,  in case there is no ventilation in the carcass (cabinet) the product may fail and the warranty will stand null and void.  Please note that you must provide a 15 Amp point for operating Built in Microwave / Built in Oven, preferably this point should be behind the Built in Oven /Built in microwave.  All below mentioned dimensions are in millimeter (mm).

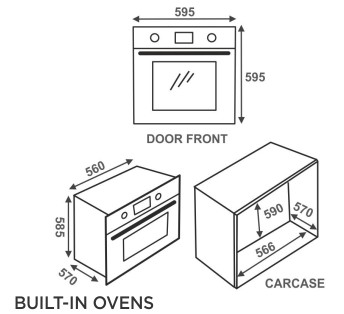

BUILT-IN OVENS

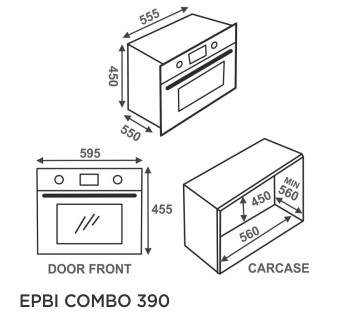

EPBI COMBO 390

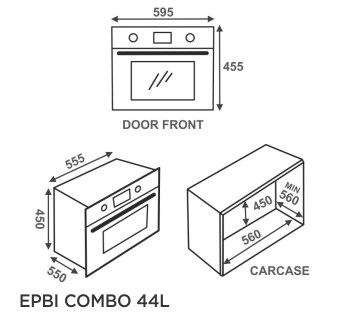

EPBI COMBO 44L

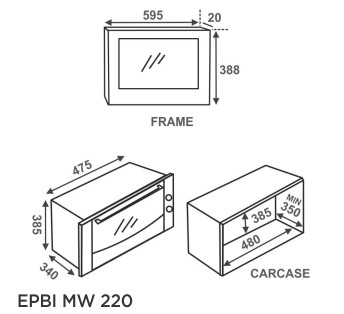

EPBI MW 220

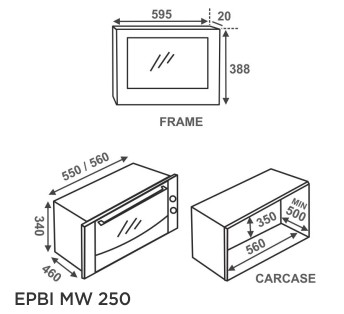

EPBI MW 250

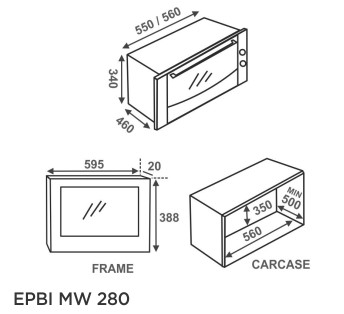

EPBI MW 280

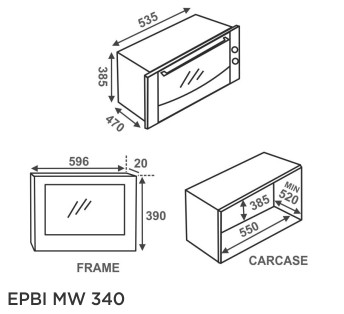

EPBI MW 340

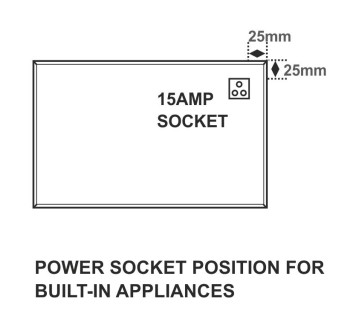

POWER SOCKET POSITION FOR OVEN & MW















Built in Dishwasher :

For correct operation of your Built in Dishwasher professional installation by a specialized technician is the key.

    To fit a Built in Dishwasher, Please provide below mentioned carcass cutting dimensions to your kitchen manufacturer. Please note that you must provide a 15 Amp point for operating Built in Dishwasher, preferably this point should be behind the Built in Dishwasher. All below mentioned dimensions are in millimeter (mm).

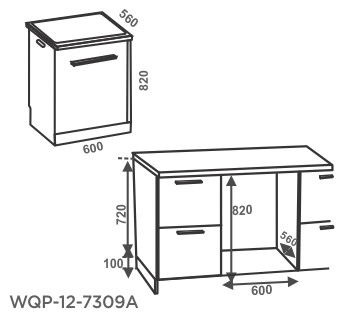

WQP-12-7309A

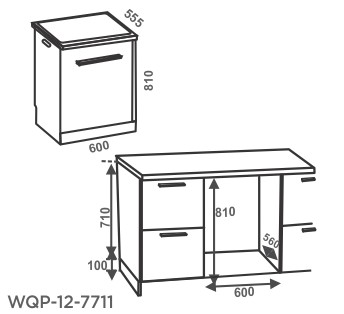

WQP-12-7711










FRYER/BARBEQUE :

For correct operation of your FRYER/BARBEQUE : professional installation by a specialized technician is the key.

    To fit a Built in Deep Fryer / Barbeque kitchen granite platform needs to be cut. Following are the cutting dimensions for cutting the granite for Built in Deep Fryer / Barbeque. Please cut the granite according the dimensions specified in below diagrams from a qualified mason/ granite cutter. Please note that you must provide a 15 Amp point for operating  Built in Deep Fryer / Barbeque below the platform in vicinity of your built in Deep Fryer /Barbeque. All below mentioned dimensions are in millimeter (mm).


elica

elica

Please note that none of the hardware required to install products  & Charcoal Filters ( required for Kitchenhoods) are included as a part of Product. All hardware & Charcoal Filters are at Extra cost.

All installations are done at an extra cost, cost will be available with authorised service centres or call on Toll Free #1800 233 0007.

However 6 inch x 10 feet Aluminum flexible duct pipe & Power cord of 3.6 meter's  is included in Split Kitchenhoods.
